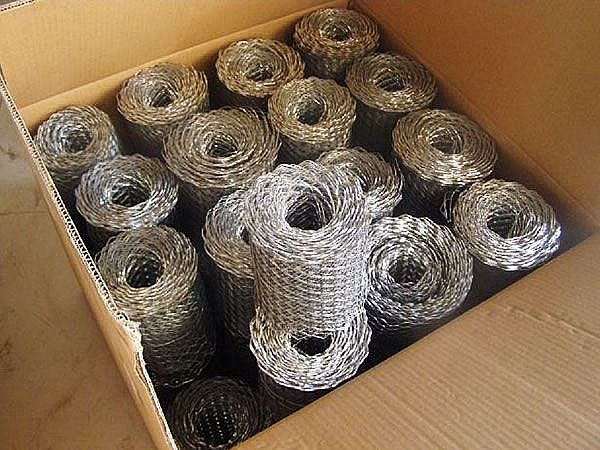

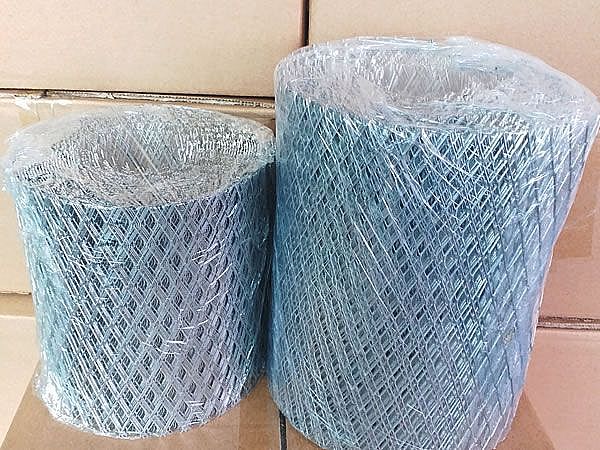

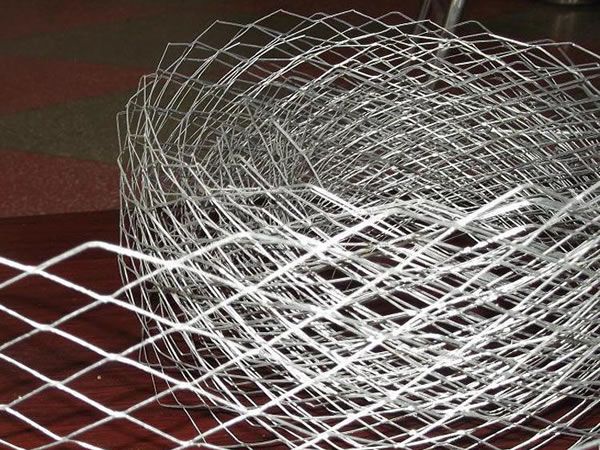

Coil Lath is a high quality expanded galvanized steel mesh for use primarily as anti-cracking reinforcement in the construction of brick and block masonry. Coil Lath is available in a variety of widths to suit most wall construction and is supplied coiled for ease of handling. Additional application include strengthening cornices, low walls and balconies over door and windown openings. Coil Lath is manufactured from galvanized steel to with quality Zinc coating G60.

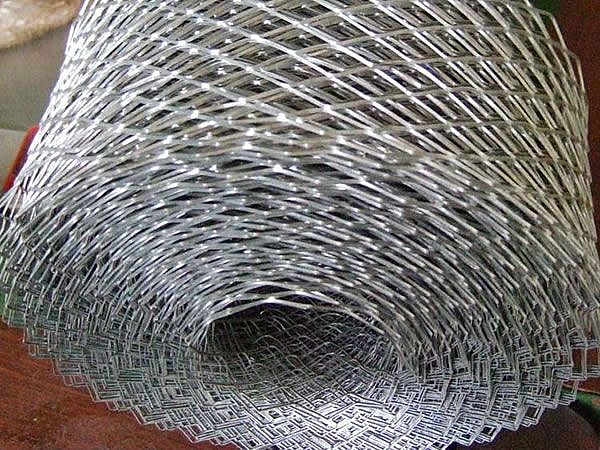

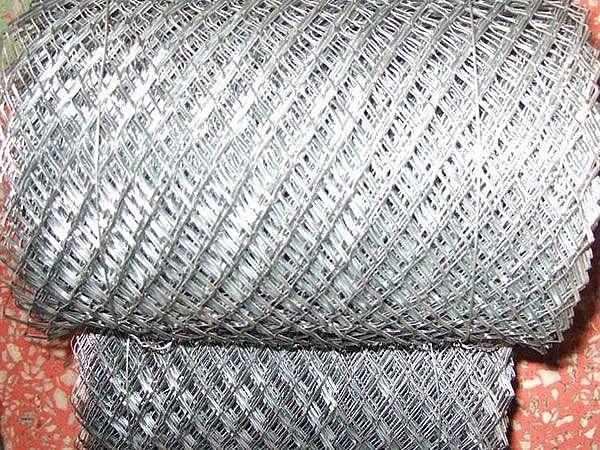

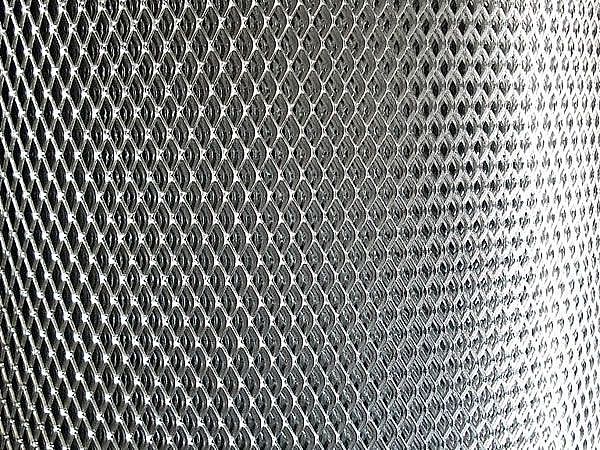

Diamond metal Lath is made of high quality expanded galvanised or stainless steel mesh for use primarily as an anti-cracking reinforcement in the construction of brick and block masonry.
Diamond metal lath is available in a variety of widths to suit most wall constructions and is supplied coiled for ease of handling. Additional applications include strengthening cornices, low walls and balconies over door and window openings.width and length can as your need.
Specifications: customized sizes are acceptable
Mesh size (MM) | Weight (kg/m2) | Thickness (mm) | Coil width (mm) | Coil length (m) |
10mm X 10mm | 0.55 | 0.35-0.5 | 60/100/150/200 | 20m, 30m |
15mm X 10mm | 0.55 | 0.35-0.5 | 60/100/150/200 | 20m, 30m |
18mm X 10mm | 0.55 | 0.35-0.5 | 60/100/150/200 | 20m, 30m |
25mm X 12mm | 0.55 | 0.35-0.5 | 60/100/150/200 | 20m, 30m |
Applications
Coil lath is mainly used in concrete slab, roads, paving, foundations, marine work, bank strong rooms, partition slabs, concrete block work, asphalt guttering etc.
Installation
Fix into mortar between brick courses leaving 25mm clearance from face of brickwork. All joints require an overlap of at least 75mm. The mesh can be laid every third brickwork course for most reinforcement.
