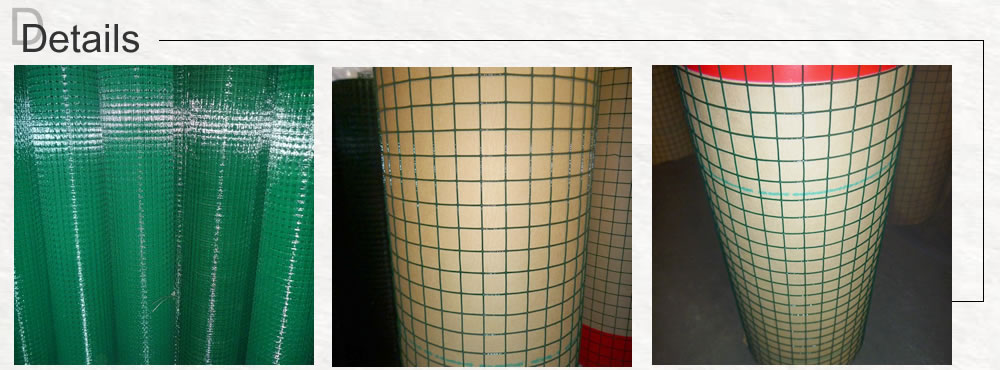

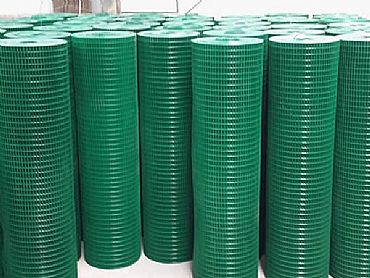

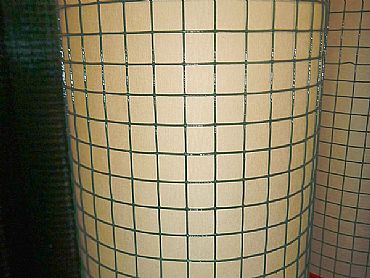

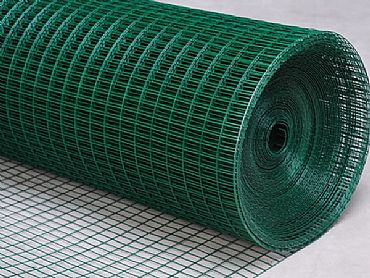

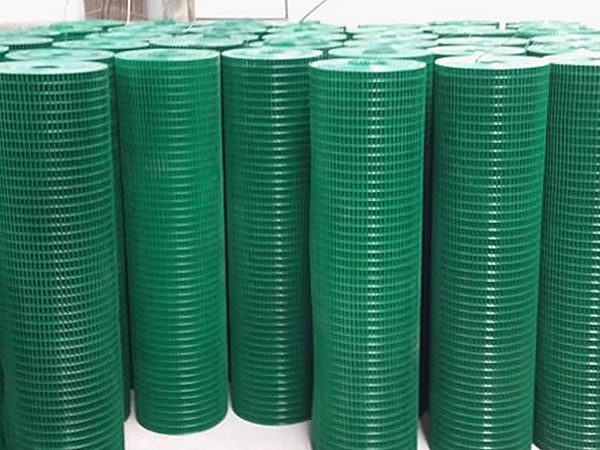

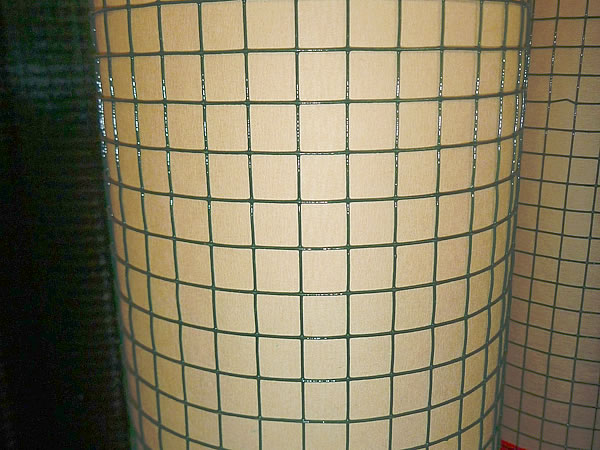

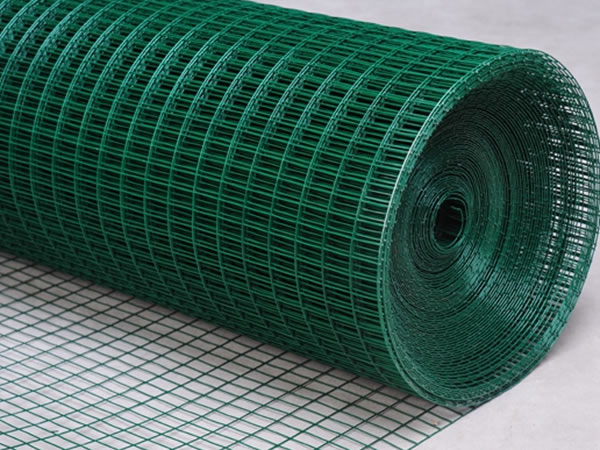

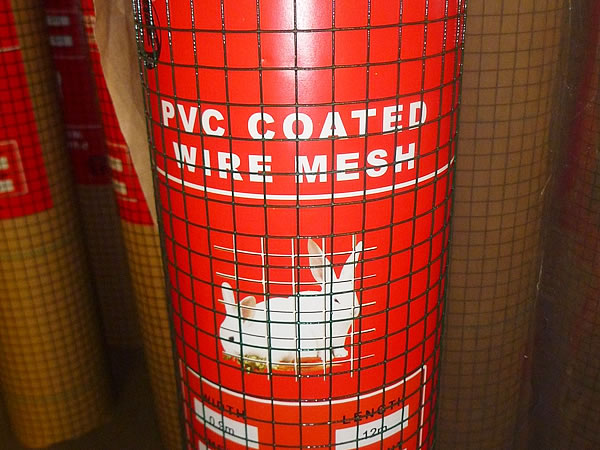

PVC Coated Welded Wire Mesh

PVC Coated Welded Wire Mesh
PVC Coated Welded Wire Mesh
PVC Coated Welded Wire Mesh
PVC Coated Welded Wire Mesh
PVC Coated Welded Wire Mesh
PVC Coated Welded Wire Mesh
PVC Coated Welded Wire Mesh
PVC Coated Welded Wire Mesh
PVC Coated Welded Wire Mesh
PVC Coated Welded Wire Mesh
MESSAGE


Material:low carbon steel wire, black iron wire,electro galvanized wire, hot dipped galvanized wire,stainless steel wire, aluminum wire
Width: 0.5m-2.0m
roll length: 15m,20m,25m,30m or as clients’ requirements

Surface treatment:
* Hot dipped galvanized before welding
* Hot dipped galvanized after welding
* Electro galvanized before welding
* Electro galvanized after welding
* PVC coating after welding
Features:
Galvanized welded wire mesh has the features of excellent anti-corrosion resistance, acid resistance, anti-alkali property, oxidation-resistance and excellent flexibility.
Due to its even and bright luster coating, galvanized welded iron wire mesh looks attractive and beautiful.
The finished galvanized welded wire mesh offers flat and uniform surface, firm structure and good integrity.
Applications:
It is widely used in the industry, agriculture, aquaculture, building, communication and transportation and mineral extraction, etc. It also finds application in shields on machinery or equipment, wire fence for livestock or flowers and trees, fence for protecting windows, fence for pathways, poultry cage, basket for holding eggs, foodstuff basket, paper basket or decorative fields in home or office.


Standard welded wire mesh
Opening size Wire diameter(BWG)
In inch In mm
1/4''×1/4'' 6.4mm×6.4mm 22 23 24
3/8"×3/8" 10.6mm×10.6mm 19 20 21 22
1/2"×1/2" 12.7mm×12.7mm 16 17 18 19 20 21 22 23
5/8"×5/8" 16mm×16mm 18 19 20 21
3/4"×3/4" 19.1mm×19.1mm 16 17 18 19 20 21
1"× 1/2" 25.4mm×12.7mm 16 17 18 19 20 21
1-1/2"×1-1/2" 38mm×38mm 14 15 16 17 18 19
1"×2" 25.4mm×50.8mm 14 15 16
2"×2" 50.8mm×50.8mm 12 13 14 15 16
Technical note:
Standard roll length:20m/25m/30m width:0.5m-2.0m width:0.5m-2.0m
Special size available at request

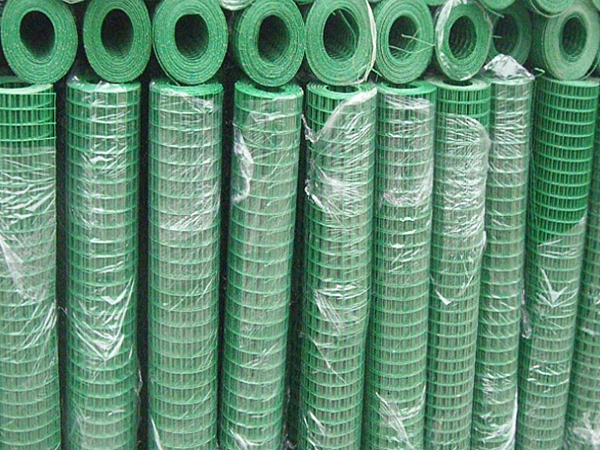

Packing:waterproof paper inside,plastic film outside or as client’s requirements.
PVC fencing mesh
Opening size Wire diameter(mm)
In inch In mm
2"'×3" 50mm×75mm 2.0mm 2.5mm 1.65mm
3"×3" 75mm×75mm 2.67mm 2.41mm 2.11mm 1.83mm1.65mm
2"'×4" 50mm×100mm 2.11mm 2.5mm
4"'×4" 100mm×100mm 2.0mm 2.5mm
Technical note:
Standard roll length:20m/25m/30m width:0.5m-2.0m width:0.5m-2.0m
Special size available at request
Packing:waterproof paper inside,plastic film outside or as client’s requirements.
