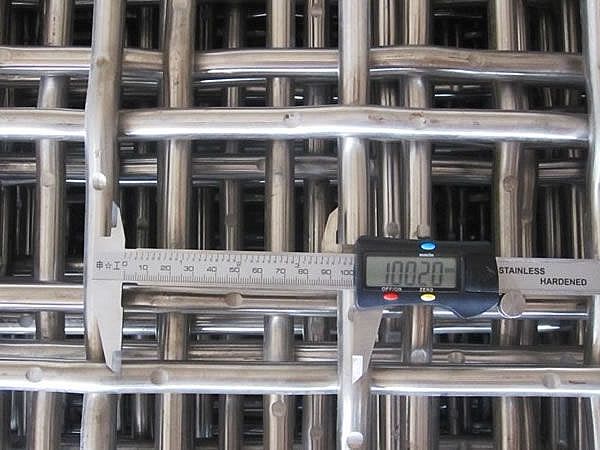

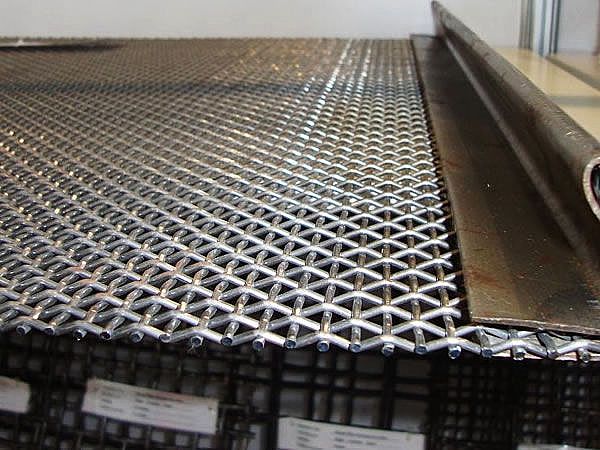

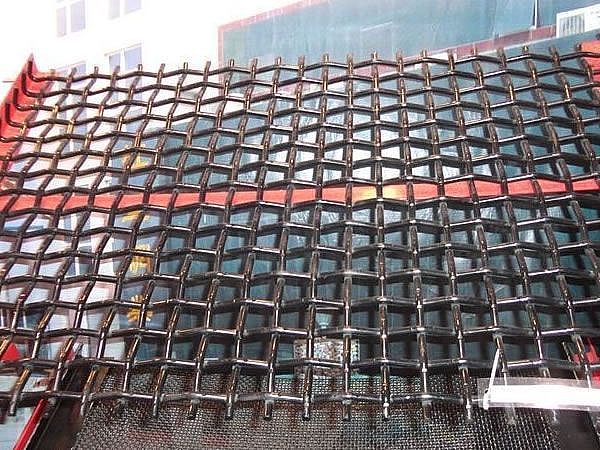

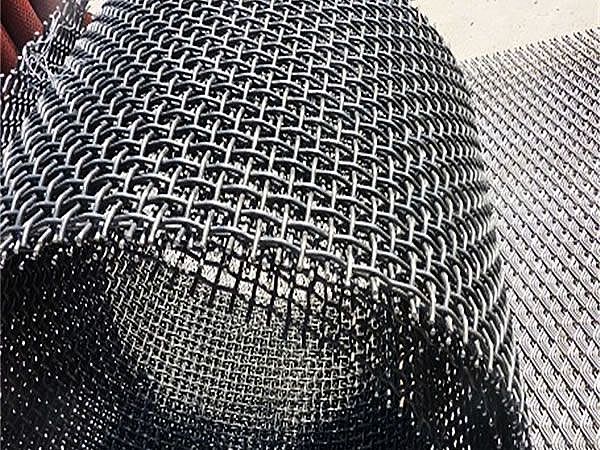

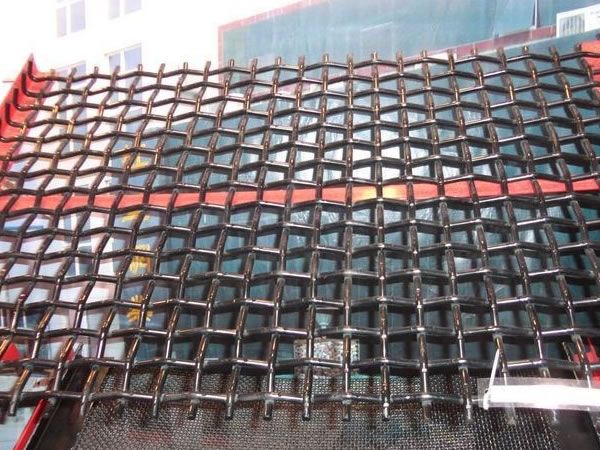

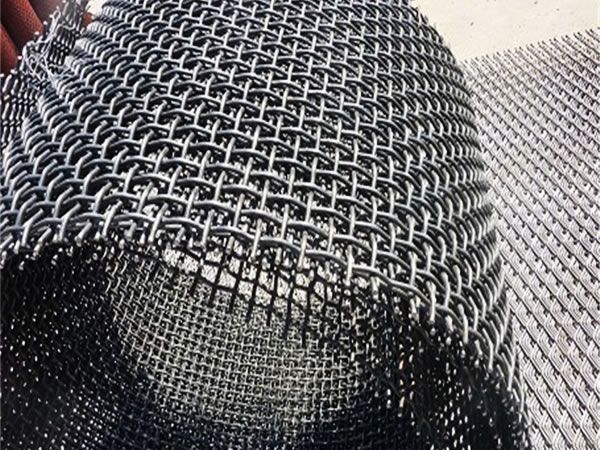

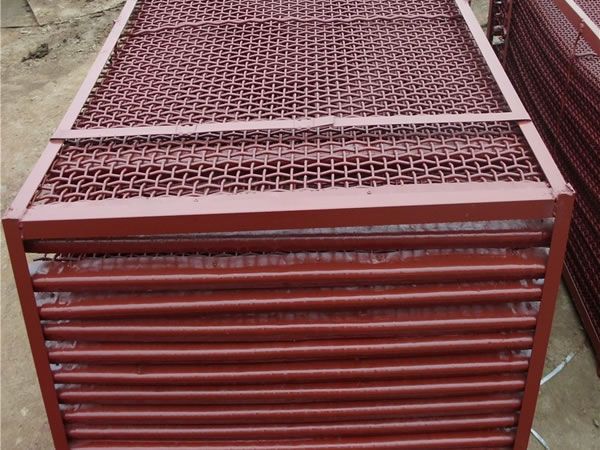

Heavy duty Crimped wire mesh are the most widely used screens in the aggregate and mining industries, due to their high screening area, precision and price ratio.
Crimped wire mesh screen (mining screen wire mesh, square wire mesh) are manufactured in different geometries (square or slotted meshes) and different weaving styles (double crimped,flat mesh, etc.).

Material: stainless steel wire, high tensile steel, high carbon steel, low carbon steel, galvanized wire, coloured steel wire.

  Wire Dia.: 0.5mm-4.0mm

  Mesh: 0.5mesh-24mesh

  Aperture: 1mm-50mm

  Width: 0.5~12m

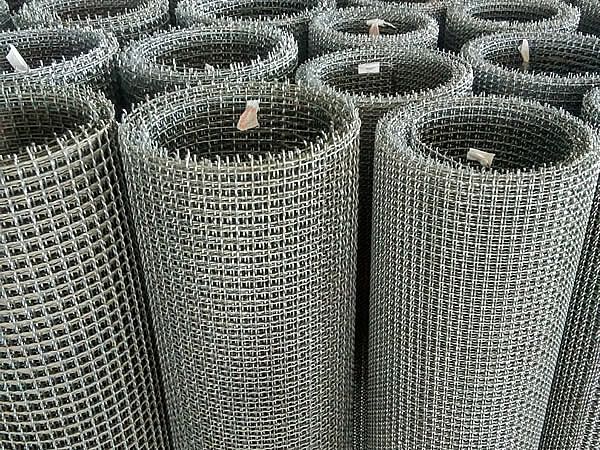

  Length: 25m/30m /50m or as clients’ needs

  Technique: woven

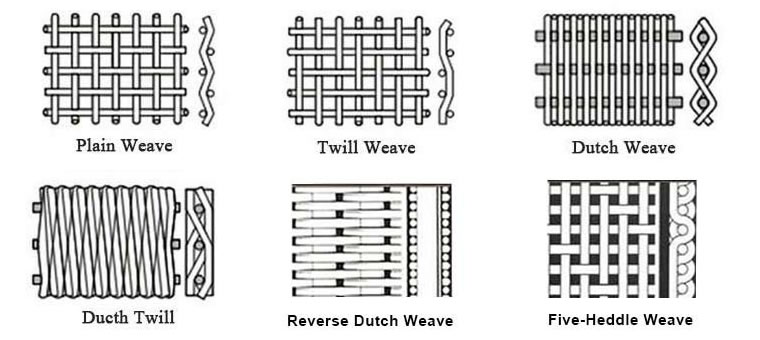

  Weave style: plain weave

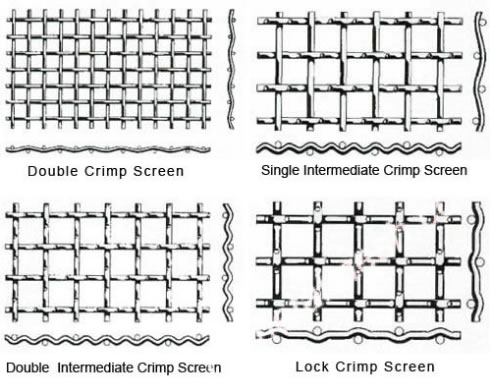

  Crimped Type: double crimped, single crimped, lock crimped.

  (Crimped wire mesh is woven after wire being crimped)

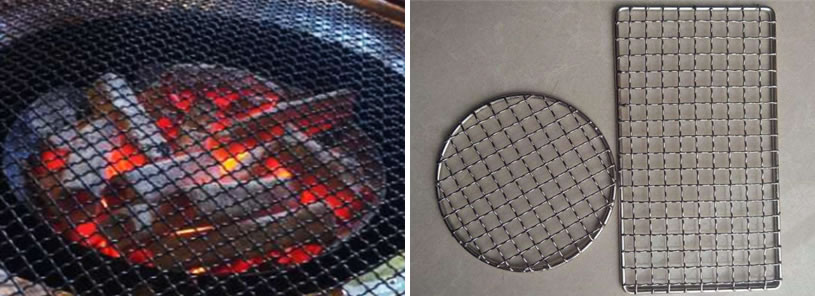

Crimped wire mesh with frame for barbeque

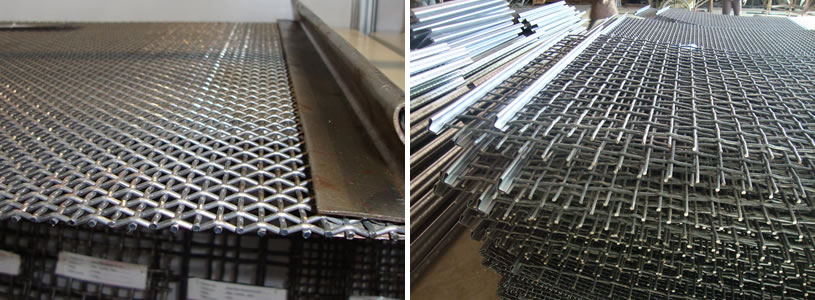

crimped wire mesh with hooks Hook: 60-180 degree, C hook available.

High temperature resisting stainless steel crimped wire mesh for oil /sand

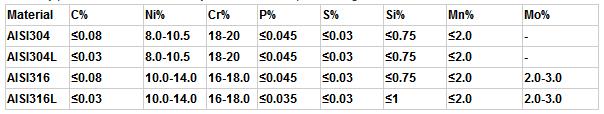

  1) Material: 316L ,304,321,2507 etc.

  2) Standard: AISI, ASTM, DIN, GB, JIS, SUS

  3) Diameter: 0.03mm-8.00mm

  4)Tensile strength:1570MPA,1670MPA, 1770MPA,1870MPA,1960MPA

  5) Weaving and characteristics: Plain weaving or twill weaving it has the performances of acid-resisting.alkali-resisting heat-resisting and wear-resisting etc.

  6) Uses:Used in mine,oil,chemical industry,food industry,pharmaceutical industry and machine producing.


  It is widely used in filtering and protection of petroleum, chemical industry and ocean industries with acid and alkali environment.

  It is also used for making glass reinforcer, various baskets for life and industrial use, art crafts, baskets used in the kitchen and refrigerator

Our advantages

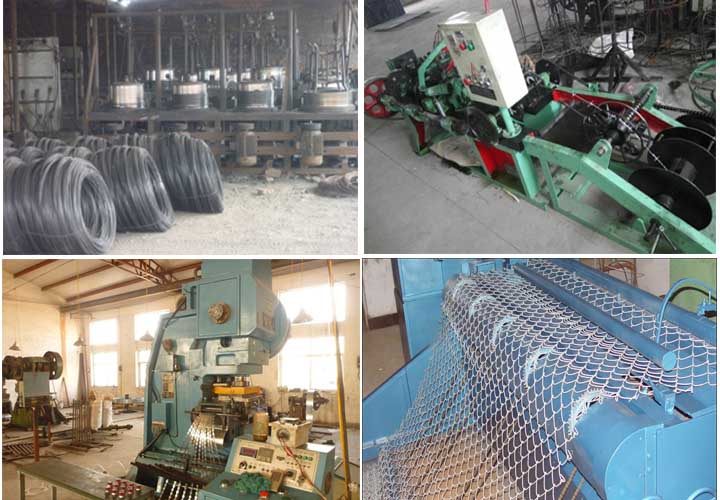

1.Good machine make excellent mesh which have even surface, uniform holes.
2.Our workers have many years experience with these machines. And some workers work with us over 8 years.
3.We use right wire, which means roll mesh have equal weight.
4.We can help you if you are not familiar and need others wire mesh products we don't have.
5.We pursue long-term cooperation, so we are always willing to answer your question. And we never deceive you for short profit.
6.Ore vision is: Be your best supplier of metal wire mesh products.


our company as a Stainless Steel Wire Mesh Manufacturers ,if you need that pls contact us.
