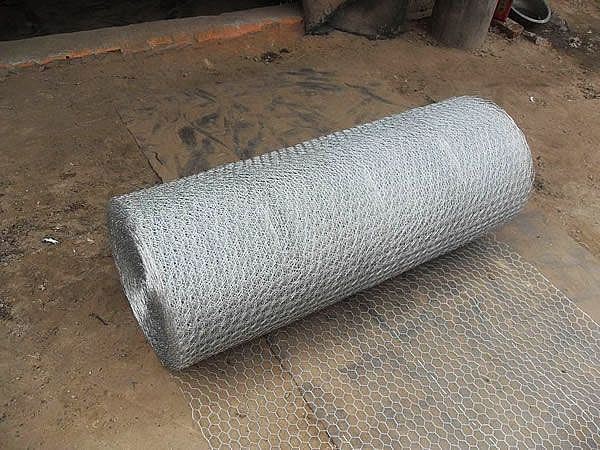

Galvanized Hexaognal Wire Mesh

MESSAGE

×

Galvanized Hexagonal wire mesh is firm in structure and has flat surface. If is estensively used in building as reinforcement of the roof and floor. It is also used as fence for poultry cage, fish, garden and children playground.

Application
Hexagonal wire Mesh with its good corrosion resistance and oxidation resistance, serves well as strengthening, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, chemical, breeding, garden and food processing industries.

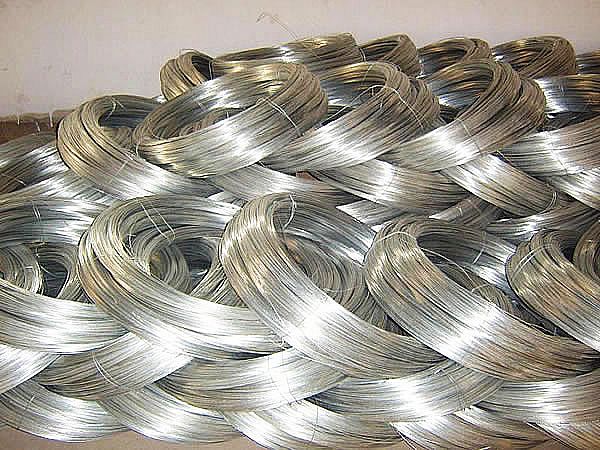

Material: low carbon steel wire, electro galvanized wire, hot dipped galvanized wire, stainless steel wire, PVC coated wire.

Weaving And Character: normal twisted, reverse twisted and double-way twisted; galvanized after weaving and galvanized before weaving; they are corrosion resistive and oxidation resistive.

Specification: Mesh: 3/8" ,1/2" ,5/8" ,3/4" ,1" ,1-1/4' , 1-1/2" ,2" , 3" , etc.

Wire Diameter: BWG27-BWG14

Width: 10cm-200cm

Length: 20m, 30m, 50m or as client’s requirements.

Specifications:

Galvanized hexagonal wire mesh in normal twist
Mesh size		Wire gauge(BWG)
In inch	In mm	Wire gauge(BWG)
3/8’’	10mm	27 26 25 24 23 22 21
1/2’’	13mm	25 24 23 22 21 20
5/8’’	16mm	27 26 25 24 23 22
3/4’’	20mm	25 24 23 22 21 20 19
1’’	25mm	25 24 23 22 21 20 18
1-1/4’’	32mm	22 21 20 18
1-1/2’’	40mm	22 21 20 18 17
2’’	50mm	22 21 20 18 17 16 15 14
3’’	75mm	21 20 18 17 16 15 14
4’’	100mm	17 16 15 14

Galvanized hexagonal wire mesh in reverse twist
Mesh size		Wire gauge ( BWG )	Reinforcement
In inch	In mm	Wire gauge ( BWG )	Width	Strand
1’’	25mm	22 21 20 18	2’	1
1-1/4’’	32mm	22 21 20 18	3’	2
1-1/2’’	40mm	20 19 18	4’	3
2’’	50mm	20 19 18	5’	4
3’’	75mm	20 19 18	6’	5

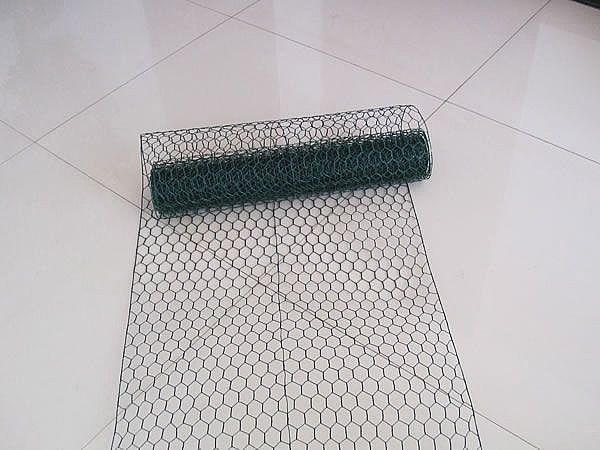

PVC coated hexaognal wire mesh
Mesh size		Wire diameter
In inch	In mm	Wire diameter
1/2’’	13mm	0.9mm 1.0mm
1’’	25mm	1.0mm 1.2mm 1.4mm
1-1/2’’	40mm	1.0mm 1.2mm 1.4mm 1.6mm
2’’	50mm	1.0mm 1.2mm 1.4mm 1.6mm
