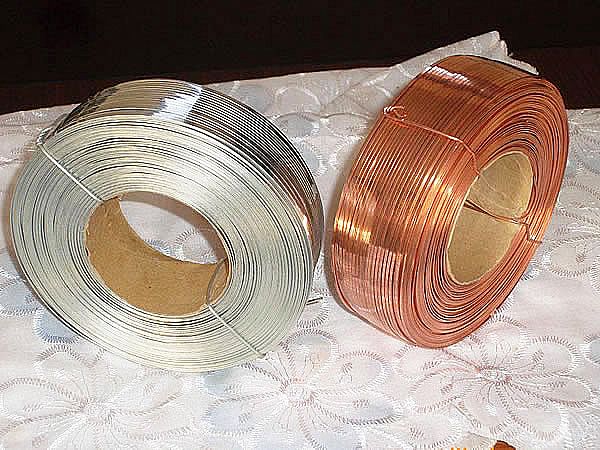

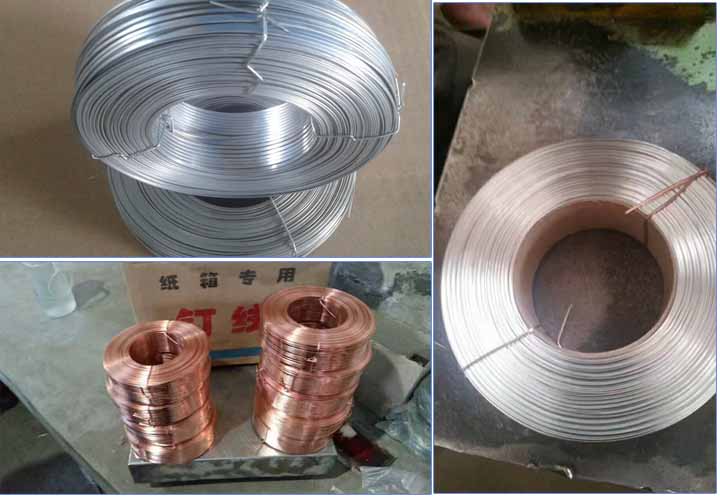

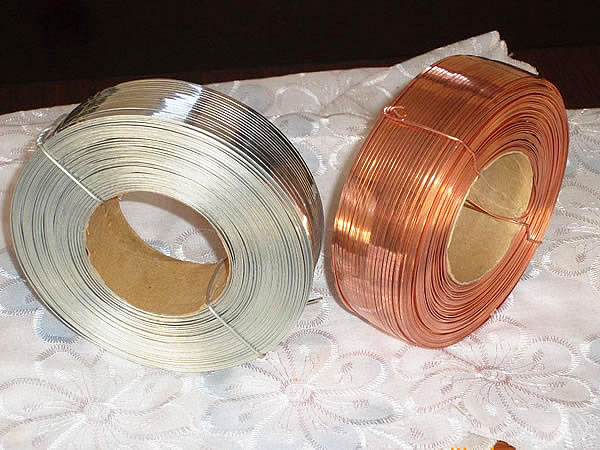

Flat Stitching Wire

Galvanized flat stitching wire ranging from BWG8# to BWG16# is the mostly used for customers. We also offer thinner galvanized wire down to BWG5# or up to BWG28# upon customers specific order. Single coil package for electro galvanized iron wire can be as small as 10 kg and up to maximum 1000 kg per coil.

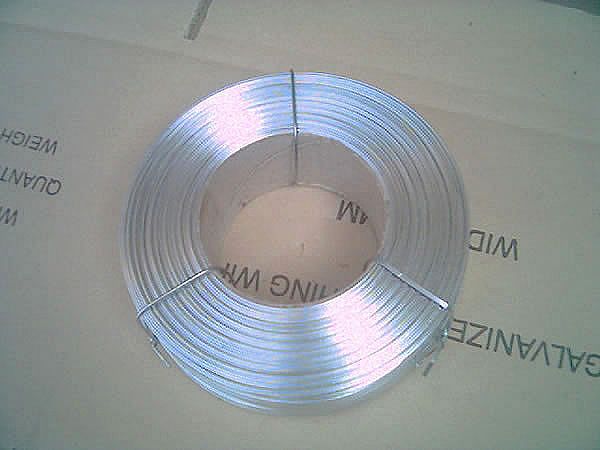

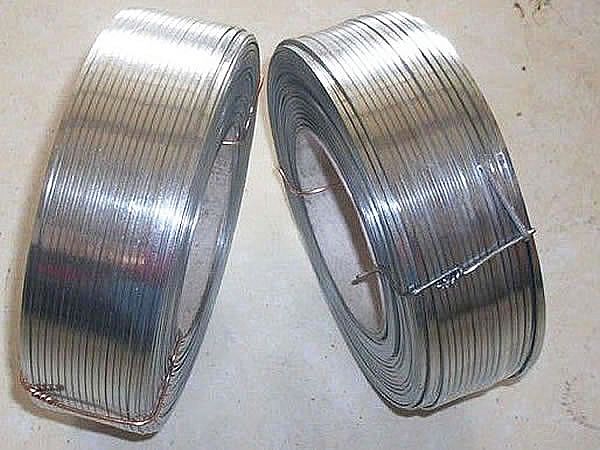

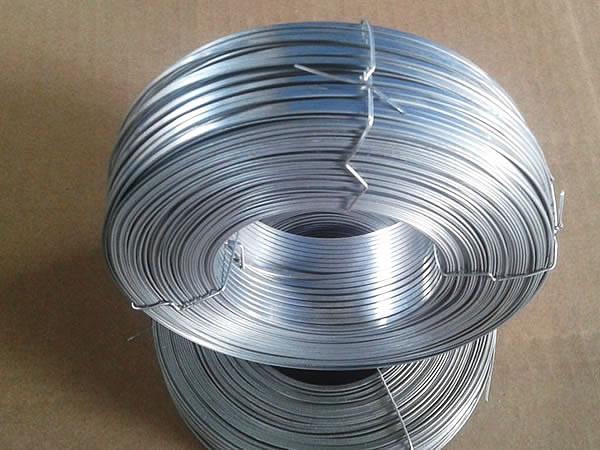

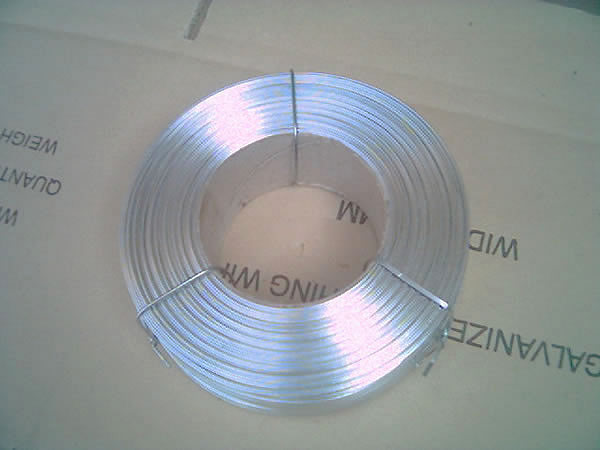

Galvanized flat stitching wire

wire diameter: 0.7 mm --- 5 mm
Zinc coating: 7--20 g / m²
Tensile strength: 350-600N/mm²
Elongation: 15 %
Specification:
1.6mmx0.7mm,1.8mmx0.8mm, 2.0mmx0.5mm, 2.25mmx0.5mm, 2.5mmx0.5mm, etc.
The width and thickness can as buyer request
Tolerance: ±0.02mm
packing: 2kg/coil 10coil/carton, 2.5kg/coil 10coil/carton or according to your request

Features:
with good surface smoothness and strong corrosion resistance , the surface with Mirror treatment,looks bright and beautiful.

Application:
used for paper cartons,tents,also used as buckle, springs, handicrafts, clean ball wire ,weaving flat wire mesh and so on.

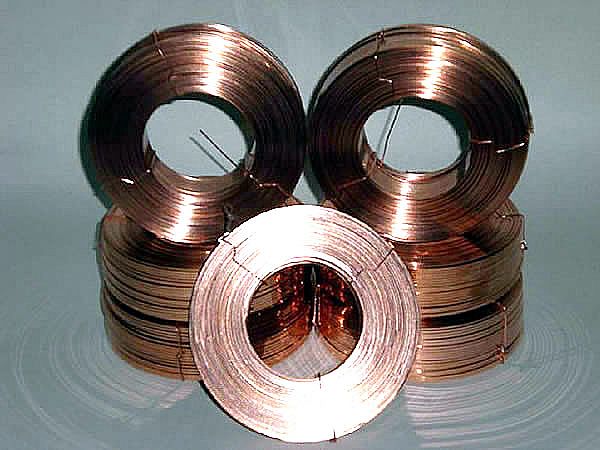

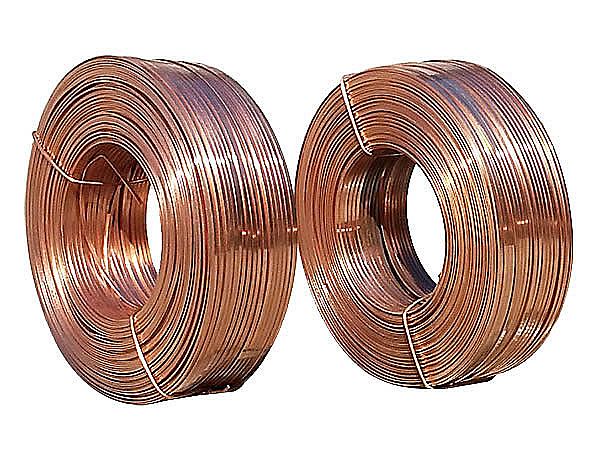

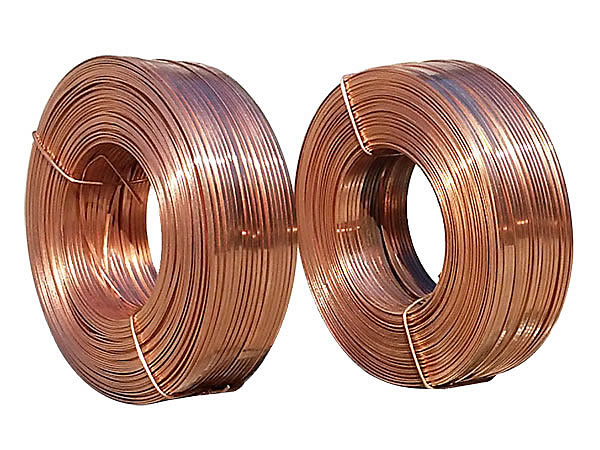

Copper coated flat stitching wire
copper coat: 5g/m² - 15g/m²
Tensile strength : 350-600N/mm²
Elongation: 15 %
Specification:
1.6mmx0.7mm,1.8mmx0.8mm, 2.0mmx0.5mm, 2.25mmx0.5mm, 2.5mmx0.5mm, etc.
The width and thickness can as buyer request
Tolerance: ±0.02mm
packing: 2kg/coil 10coil/carton, 2.5kg/coil 10coil/carton or according to your request

Features:
with good surface smoothness and strong corrosion resistance , the surface with Mirror treatment,looks bright and beautiful.

procedure:
Iron rod--drawing---annealed--acid rushing--copper coating--flattening--coils--packing

Application:
used for paper cartons,tents,also used as buckle, springs, handicrafts, clean ball wire ,weaving flat wire mesh and so on.

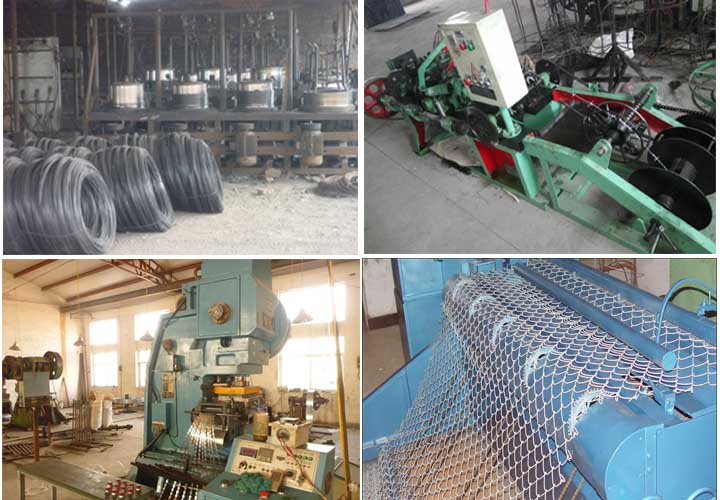

FACTORY:

FAQ:
Q: Are you a manufacturer?
A: Yes,our company as a Stainless Steel Wire Mesh factory .we have specialized in this field for about 26 years experience.
Q: Could you provide sample ?
A: es,we can provide sample in half A4 size together with our catalogue.
But the courier charge will on your side.
We'll send back the courier charge if you make an order.
Q: What information should I provide,if I want a lowest quotation?
A: The specification of wire mesh.such as material,mesh number, wire diameter,hole size,width,quantity,finishing.
Q: How is your delivery time?
A: We always prepae enough stock material for your urgent requirement. the delivery time is 7days for all the stock material.
We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.
