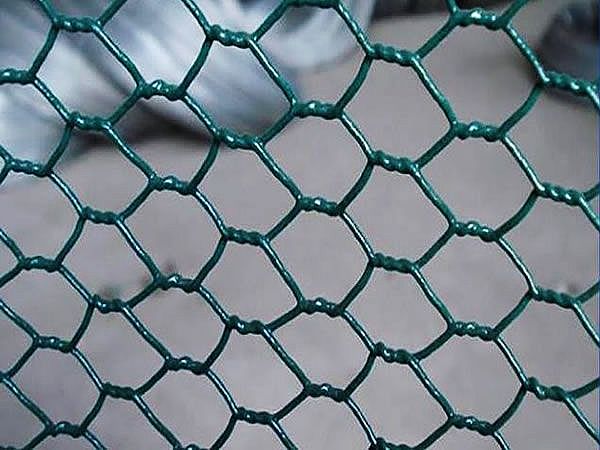

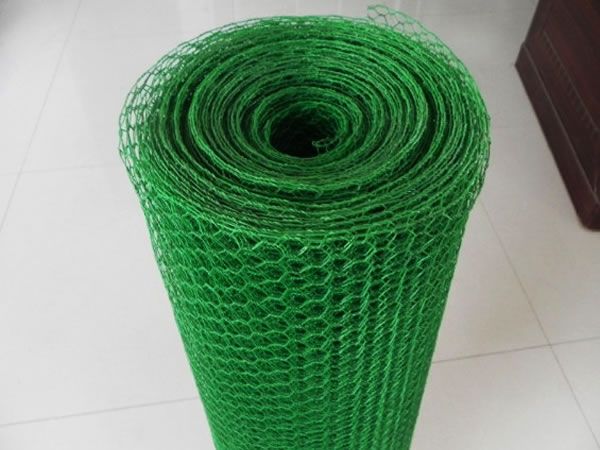

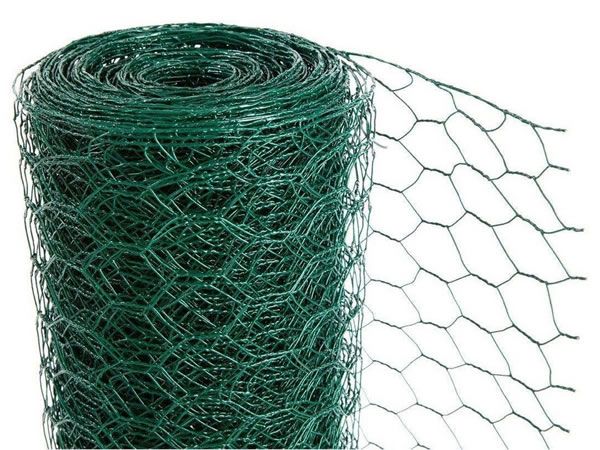

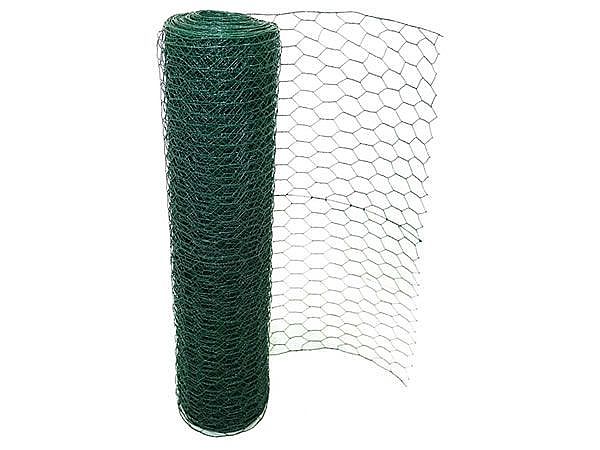

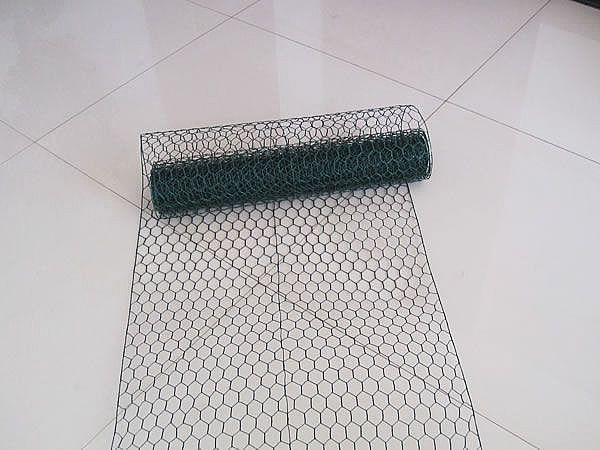

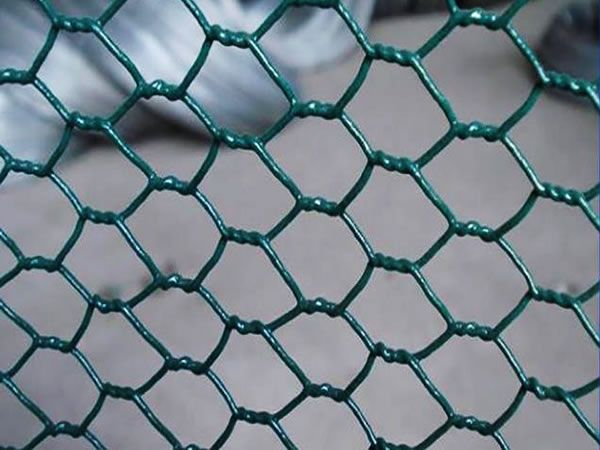

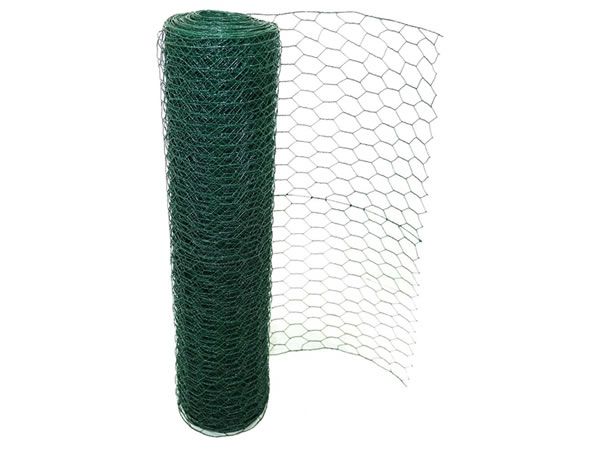

Pvc Coated Hexagonal Wire Mesh

Pvc Coated Hexagonal Wire Mesh
Pvc Coated Hexagonal Wire Mesh
Pvc Coated Hexagonal Wire Mesh
Pvc Coated Hexagonal Wire Mesh
Pvc Coated Hexagonal Wire Mesh
Pvc Coated Hexagonal Wire Mesh
Pvc Coated Hexagonal Wire Mesh
Pvc Coated Hexagonal Wire Mesh
Pvc Coated Hexagonal Wire Mesh
Pvc Coated Hexagonal Wire Mesh
Pvc Coated Hexagonal Wire Mesh
Pvc Coated Hexagonal Wire Mesh
MESSAGE

Hexagonal wire mesh is firm in structure and has flat surface. If is estensively used in building as reinforcement of the roof and floor. It is also used as fence for poultry cage, fish, garden and children playground.

Material: low carbon steel wire, electro galvanized wire, hot dipped galvanized wire, stainless steel wire, PVC coated wire.

Weaving And Character: normal twisted, reverse twisted and double-way twisted; galvanized after weaving and galvanized before weaving; they are corrosion resistive and oxidation resistive.

Specification: Mesh: 3/8" ,1/2" ,5/8" ,3/4" ,1" ,1-1/4' , 1-1/2" ,2" , 3" , etc.

Wire Diameter: BWG27-BWG14

Width: 10cm-200cm

Length: 20m, 30m, 50m or as client’s requirements.

Specifications:

Galvanized hexagonal wire mesh in normal twist
Mesh size Wire gauge(BWG)
In inch In mm
3/8’’ 10mm 27 26 25 24 23 22 21
1/2’’ 13mm 25 24 23 22 21 20
5/8’’ 16mm 27 26 25 24 23 22
3/4’’ 20mm 25 24 23 22 21 20 19
1’’ 25mm 25 24 23 22 21 20 18
1-1/4’’ 32mm 22 21 20 18
1-1/2’’ 40mm 22 21 20 18 17
2’’ 50mm 22 21 20 18 17 16 15 14
3’’ 75mm 21 20 18 17 16 15 14
4’’ 100mm 17 16 15 14
Galvanized hexagonal wire mesh in reverse twist
Mesh size Wire gauge
( BWG )
Reinforcement
In inch In mm Width Strand
1’’ 25mm 22 21 20 18 2’ 1
1-1/4’’ 32mm 22 21 20 18 3’ 2
1-1/2’’ 40mm 20 19 18 4’ 3
2’’ 50mm 20 19 18 5’ 4
3’’ 75mm 20 19 18 6’ 5
PVC coated hexaognal wire mesh
Mesh size Wire diameter
In inch In mm
1/2’’ 13mm 0.9mm 1.0mm
1’’ 25mm 1.0mm 1.2mm 1.4mm
1-1/2’’ 40mm 1.0mm 1.2mm 1.4mm 1.6mm
2’’ 50mm 1.0mm 1.2mm 1.4mm 1.6mm
