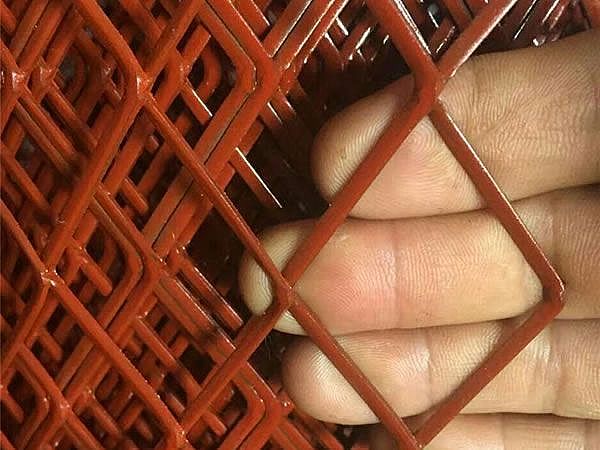

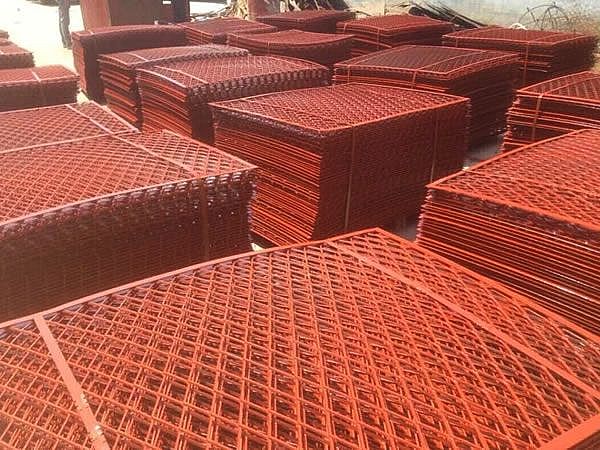

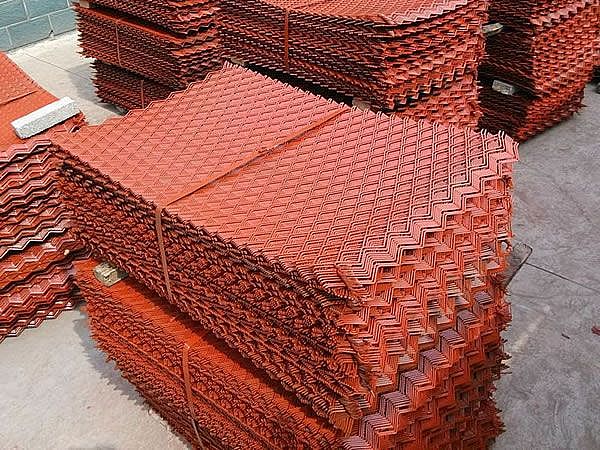

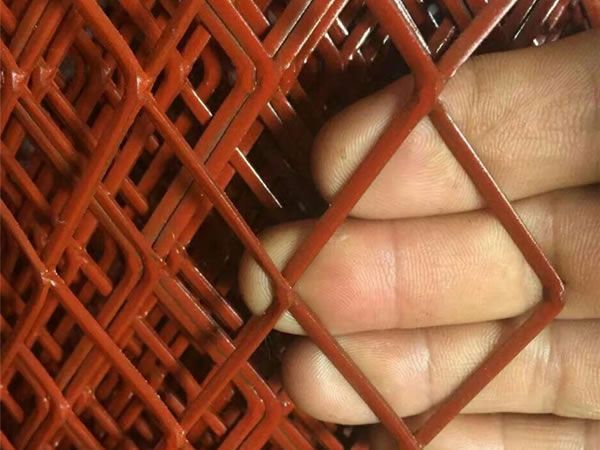

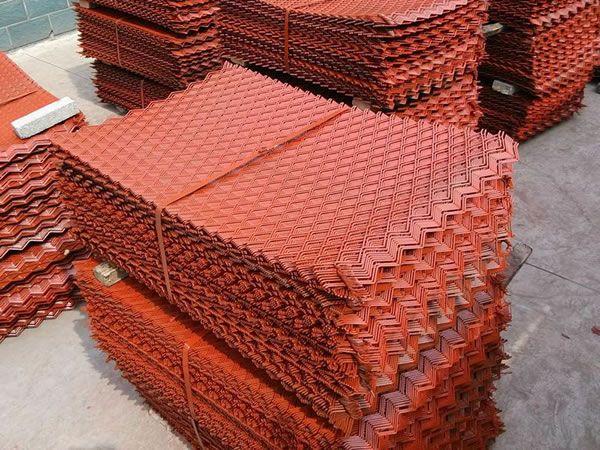

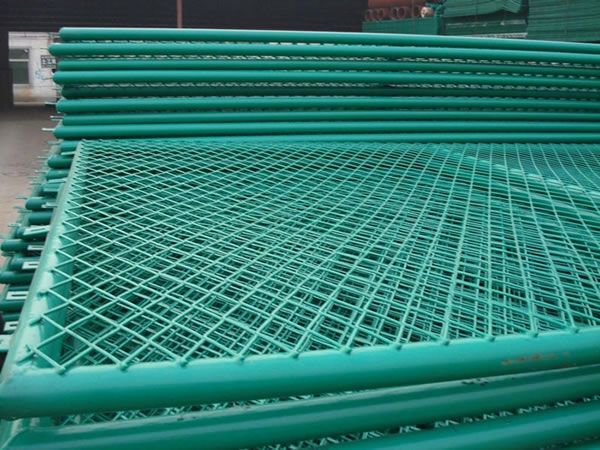

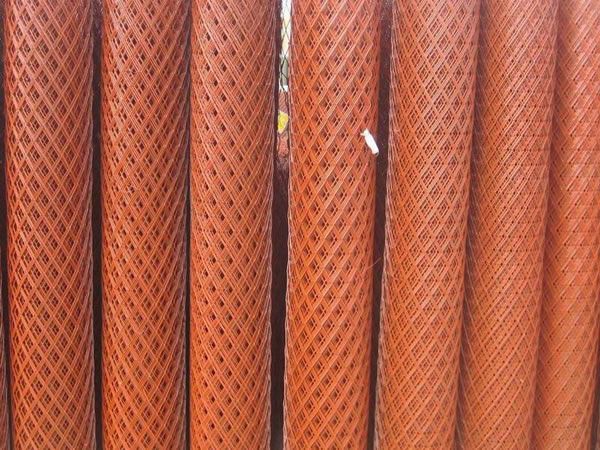

Powder Coated Expanded Metal Mesh

Powder Coated Expanded Metal Mesh
Powder Coated Expanded Metal Mesh
Powder Coated Expanded Metal Mesh
Powder Coated Expanded Metal Mesh
Powder Coated Expanded Metal Mesh
Powder Coated Expanded Metal Mesh
Powder Coated Expanded Metal Mesh
Powder Coated Expanded Metal Mesh
Powder Coated Expanded Metal Mesh
Powder Coated Expanded Metal Mesh
Powder Coated Expanded Metal Mesh
Powder Coated Expanded Metal Mesh
MESSAGE

Expanded Wire Mesh is manufactured by slitting and stretching galvanized steel to form small opening to allow the keying of plaster so it will bond to the lath. Each sheet has square ends and smooth parallel edges for fast, easy handling and installation. Diamond Mesh Lath can be bent easily to create curved surfaces.

Material: low carbon steel, galvanized plate, stainless steel plate, brass plate, aluminum plate,titanium plate, nickel plate, almg alloy plate.

Hole shape: diamond, square, round, triangle and scale -shaped opening.

Weaving: punched and stretched, sturdy and durable with elegant appearance.

Metal Surface: PVC coated, sprayed, plastic coated, hot dipped galvanized, electro galvanized, etc.

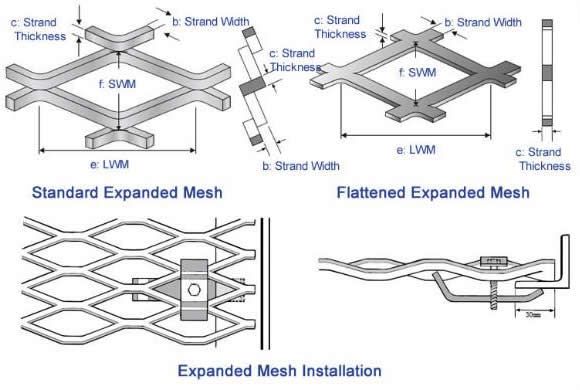

Specification

SWM:Center from node tonode of thelength of the short diagonal.

LWM:Center from node tonode of thelength of the long diagonal.

SWD:The length of the short diagonal of the hole.

LWD:The length of the long diagonal of the hole.

Strand:Make a silk stem length of the metal plate used.

Bond:Two-node connections.

Specifications of Expanded Metal Mesh

Sheet Thickness Opening in width(mm) SWD Opening in length(mm) LWD Strand width (mm) Roll width (m) Roll length (m) Weight (kg/m2)
0.5 2.5 4.5 0.5 0.5 1 1.8
0.5 10 25 0.5 0.6 2 0.73
0.6 10 25 1 0.6 2 1
0.8 10 25 1 0.6 2 1.25
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69
2 22 60 2.6 2 4 3.69
3 40 80 3.8 2 4 5
4 50 100 4 2 2 11.15
4.5 50 100 5 2 2.7 11.15
5 50 100 5 1.4 2.6 12.39
6 50 100 6 2 2.5 17.35
8 50 100 8 2 2.1 28.26

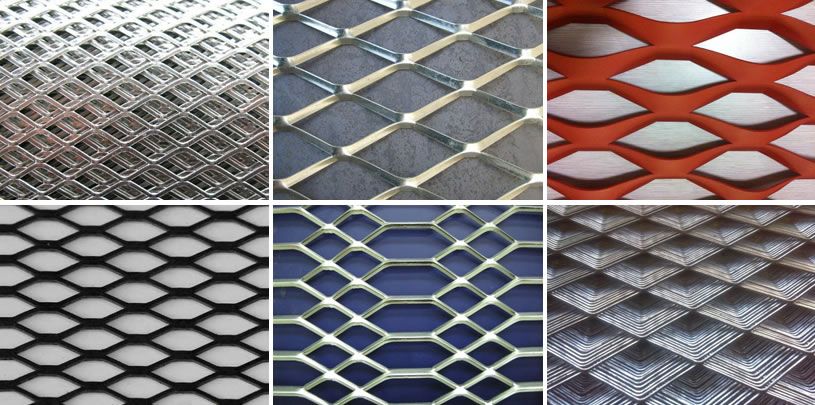

Expanded Metal Mesh Variety

small, medium and heavy expanded metal mesh. Expanded aluminum mesh, expanded platinum filtration mesh, expanded brass mesh, expanded copper mesh, expanded stainless steel mesh, expanded nickel mesh. Opening in the shape of diamond, hexagonal or special shape.

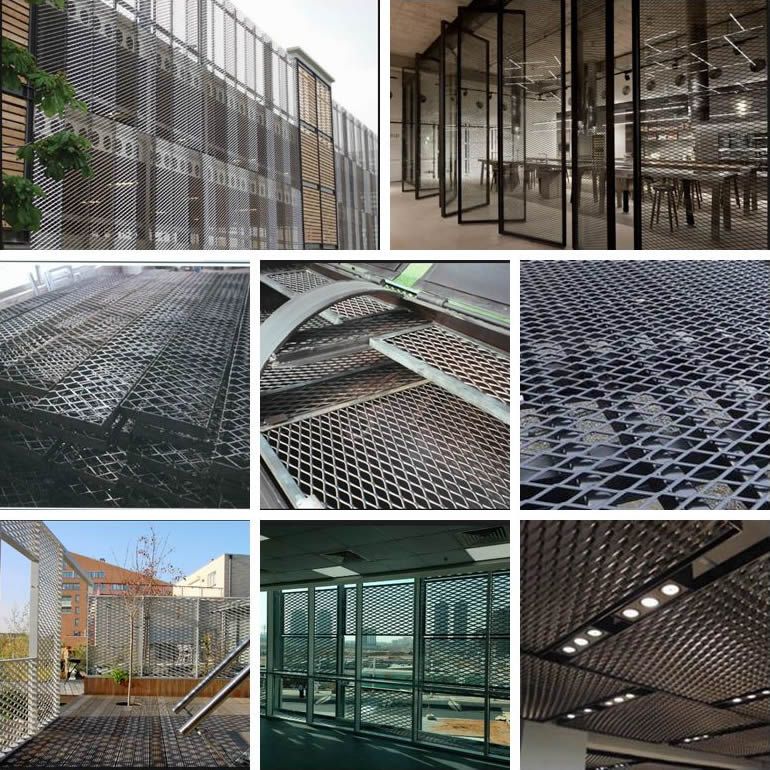

Expanded Metal Mesh Application

Flooring,Ventilation,Architectural,Railing,Filtration,Decorative mesh,Wall facade and cladding,Building ceiling,Sun screen,Interior design,etc.

Expanded Metal Mesh Use

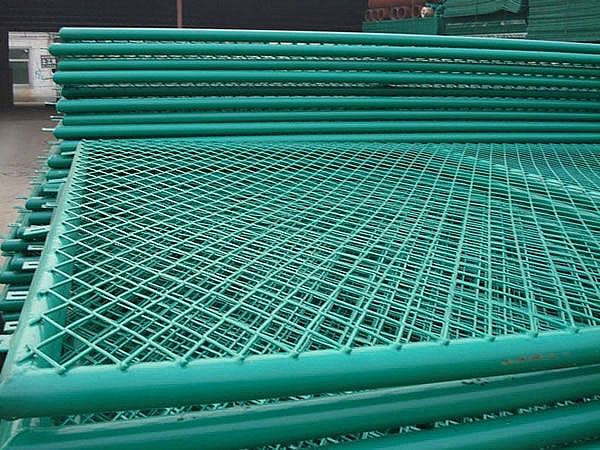

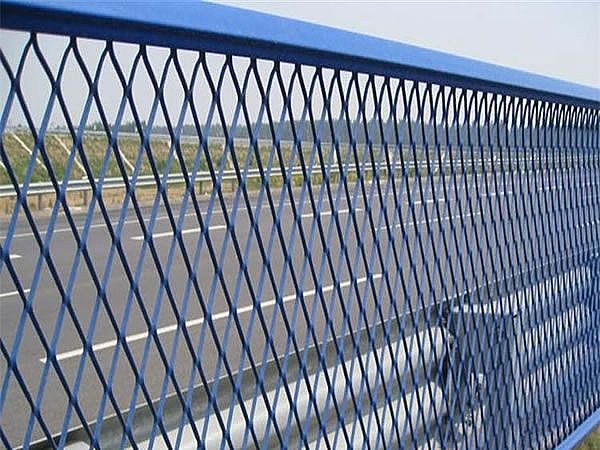

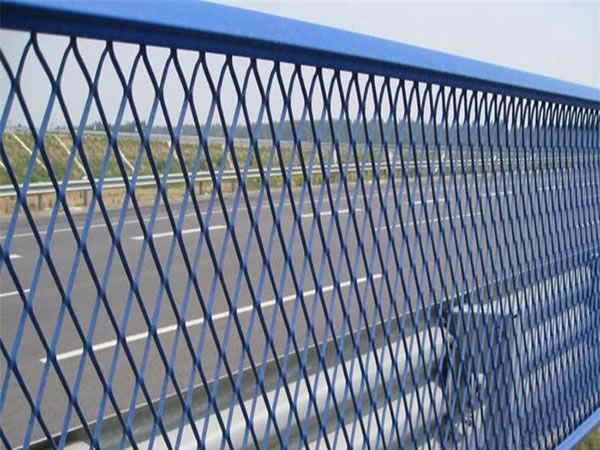

Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships. Also serve as reinforcing bar in construction, railway and bridges.

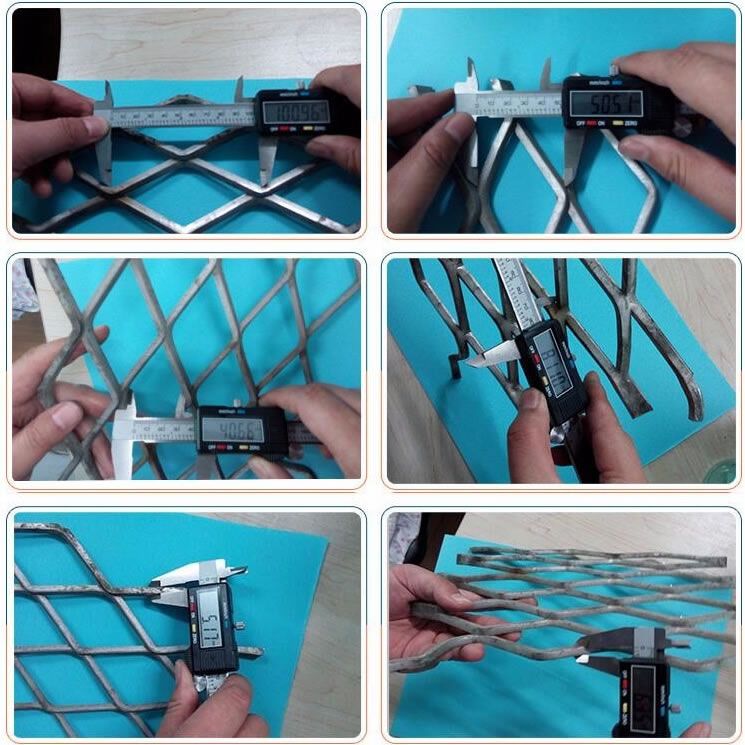

Quality inspections before shipment


our company as aStainless Steel Wire Mesh Supplier ,if you need that pls contact us.
